2.绝缘： PTFE
3.屏蔽： 镀银铜线
4.外绝缘： PTFE
5.护套： 玻璃纤维编织/FEP等
通常适用于高频HF、甚高频VHF和特高频UHF，应用于无线基站的内部连接；
所有MIL-C-17的要求，良好的屏蔽效能，被动互调（PIM）低；
衰减低、功率容量高，耐高温、耐腐蚀，机械性能优异；
可为客户订制电缆。
RG115, High Power Coax, Up to 250℃, 10.5mm, 50 ohm
RG119, High Power Coax, Up to 250℃, 11.8mm, 50 ohm
RG120, High Power Coax, Alloy armored, High Power, 13.3mm
RG142 (M17/60-RG142)，OD.4.95mm双屏，50欧姆同轴电缆
RG144, 75 ohm, High Power Coax, Up to 250℃, 10.4mm
RG165 High Power Coax with Fiberglass Jacket, 10.4mm
RG166 Alloy armored High Power Coax , Up to 250°C, 11.9mm
RG178 (M17/93-RG178), OD.1.80mm柔性，50欧姆微型同轴
RG179 (M17/94-RG179), OD.2.54mm柔性，75欧姆微型同轴
RG187 A/U, PTFE Tape Wrapped Jacket, 2.49mm, 75 ohm

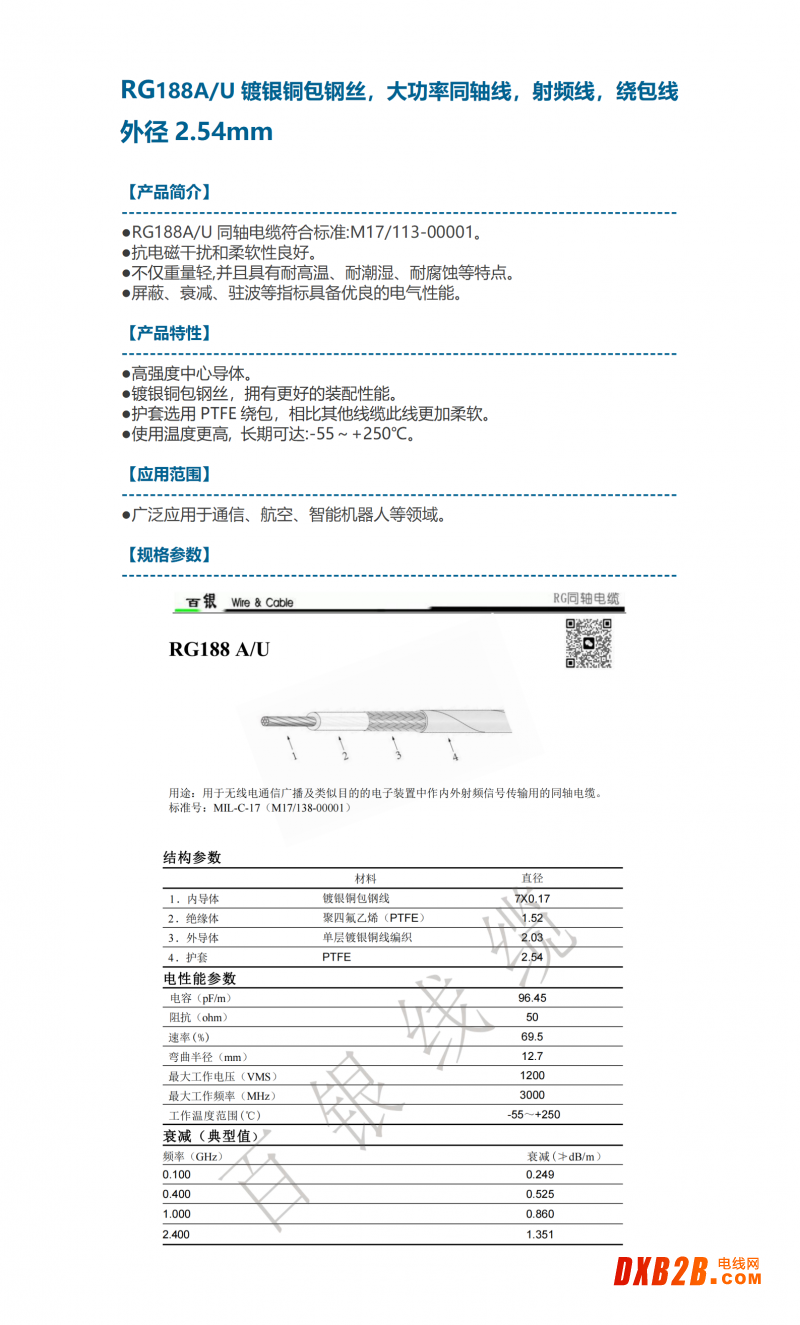

RG188 A/U, PTFE Tape Wrapped Jacket, 2.49mm, 50 ohm
RG195 A/U, PTFE Tape Wrapped Jacket, 3.68mm, 95 ohm
RG196 A/U, PTFE Tape Wrapped Jacket, 1.80 mm, 50 ohm
RG304 (M17/112-RG304), 大功率50欧姆, OD.7.11mm
RG393( M17/127-RG393), 大功率射频同轴电缆, OD.9.9mm
